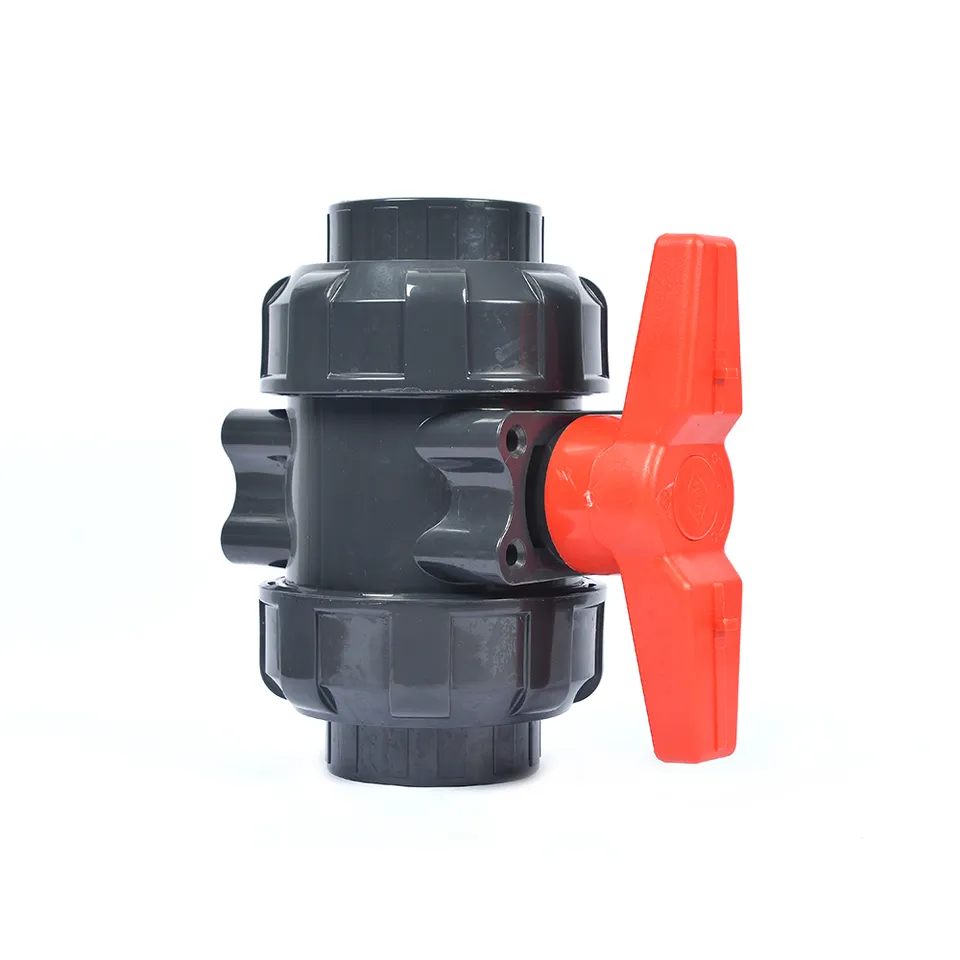

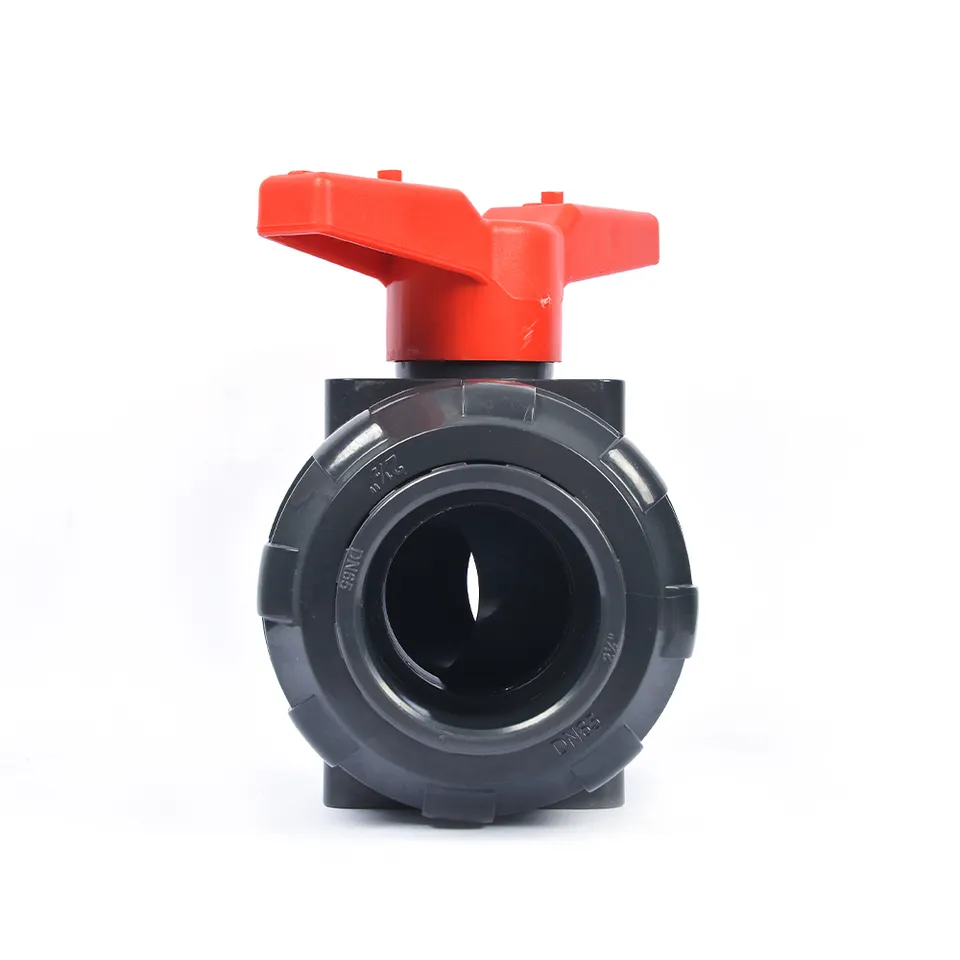

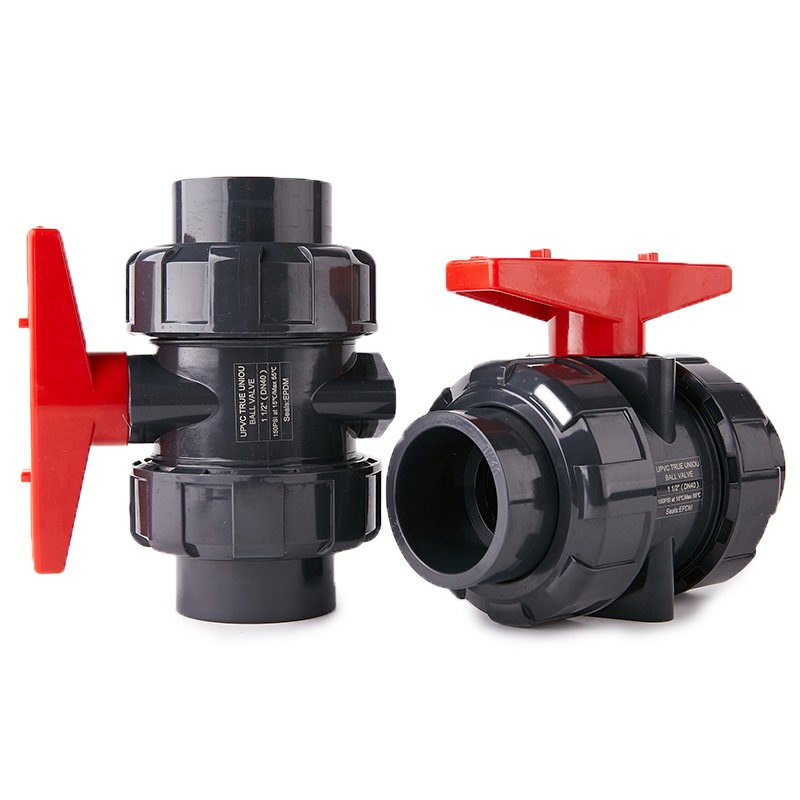

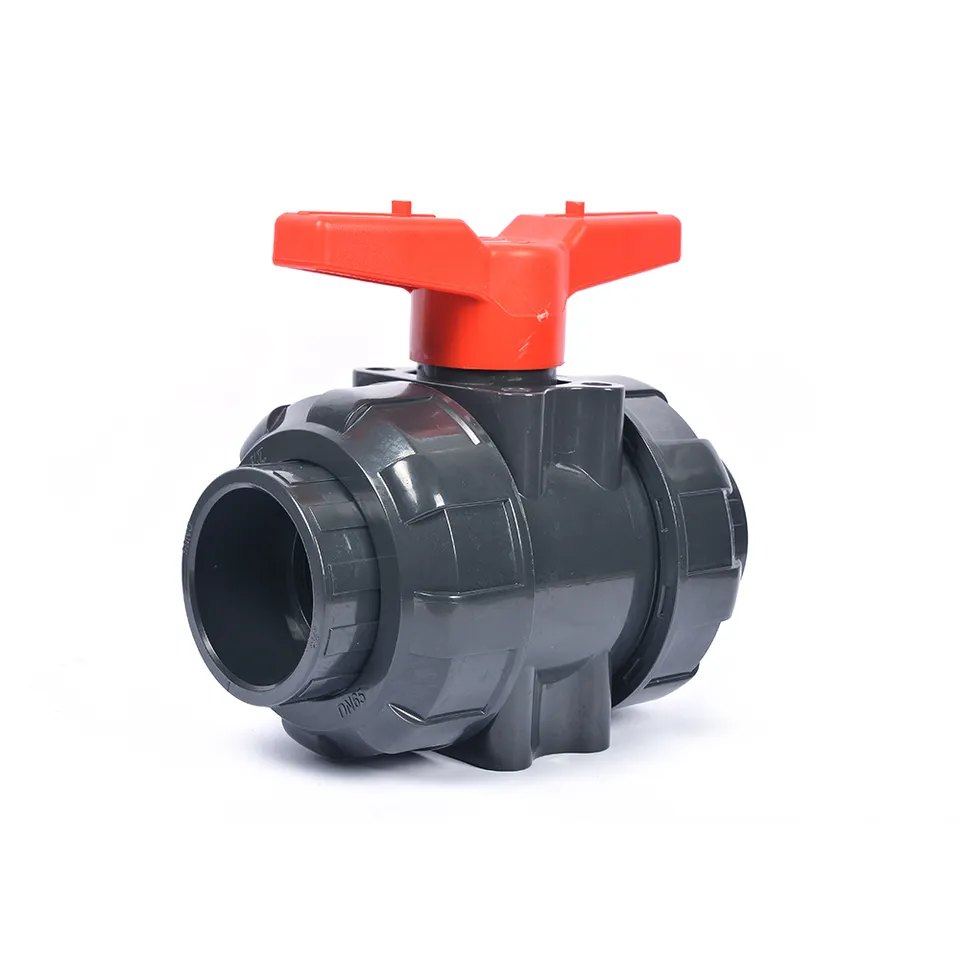

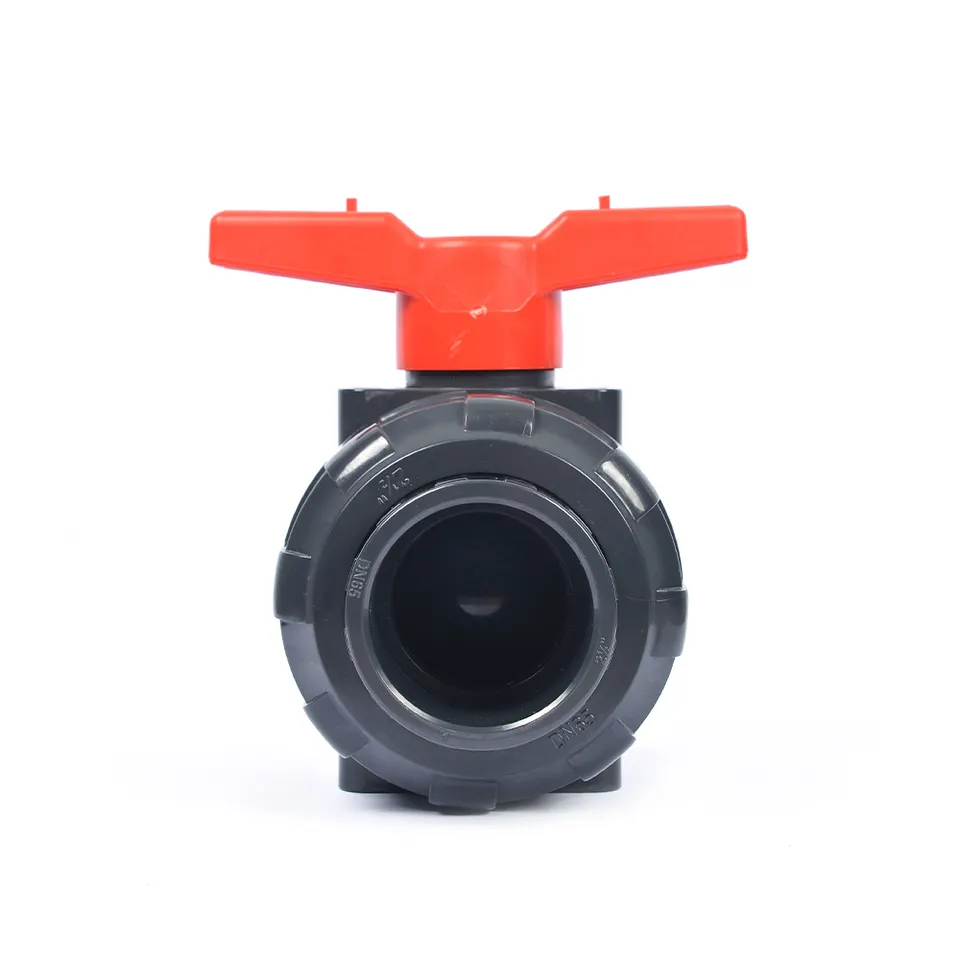

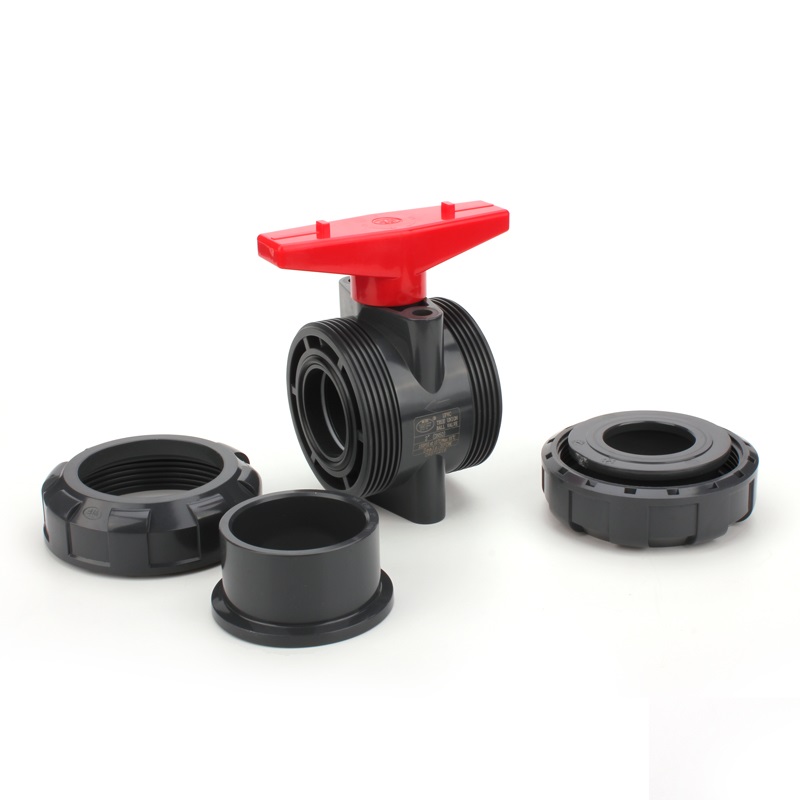

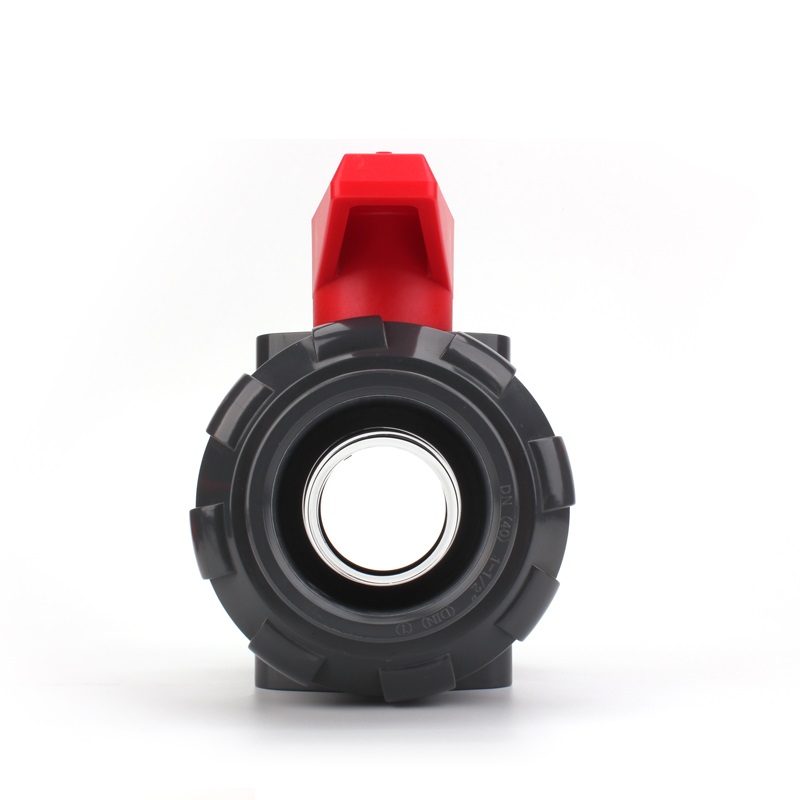

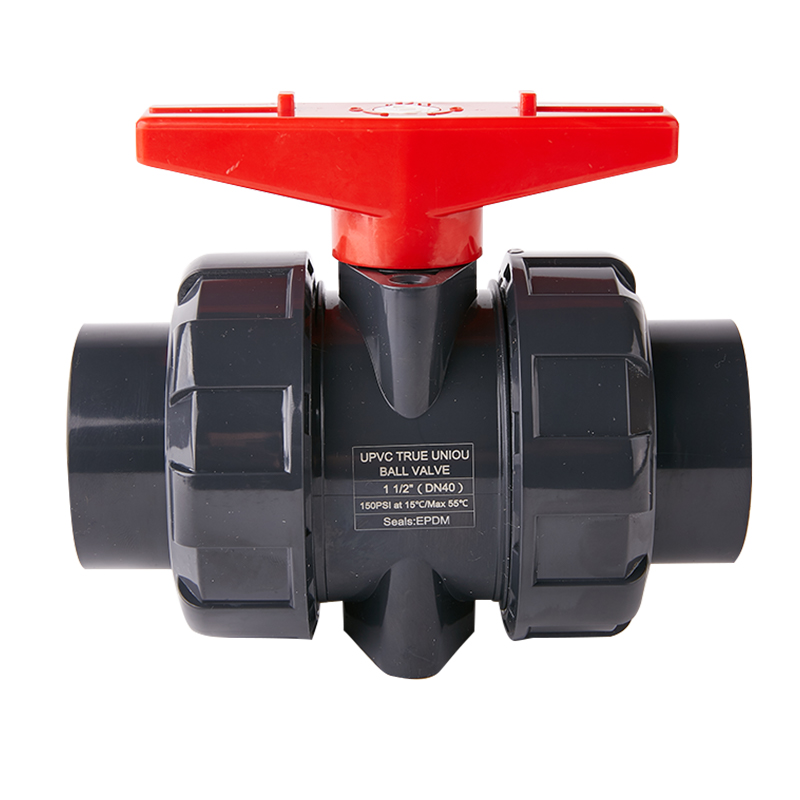

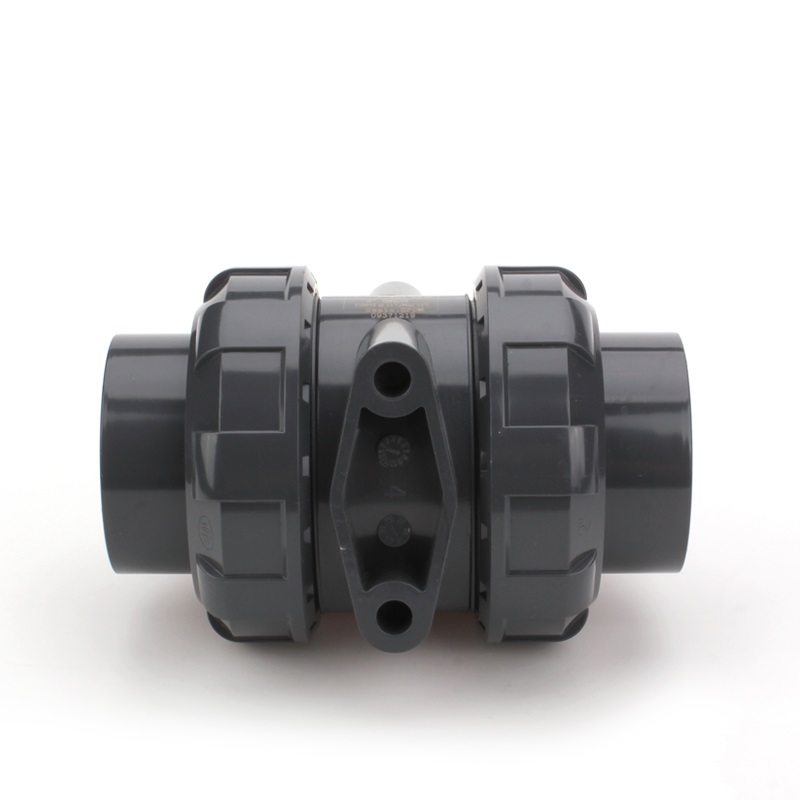

UPVC TRUE UNION BALL VALVE - EVA

TECHNICAL CHARACTERISTICS

  • “Antiblock” system that avoids ball blockage.
  • 100% factory tested.
  • Minimal pressure drop.
  • Low operating torque.
  • Resistance to many inorganic chemicals.
  • Excellent flow characteristics.

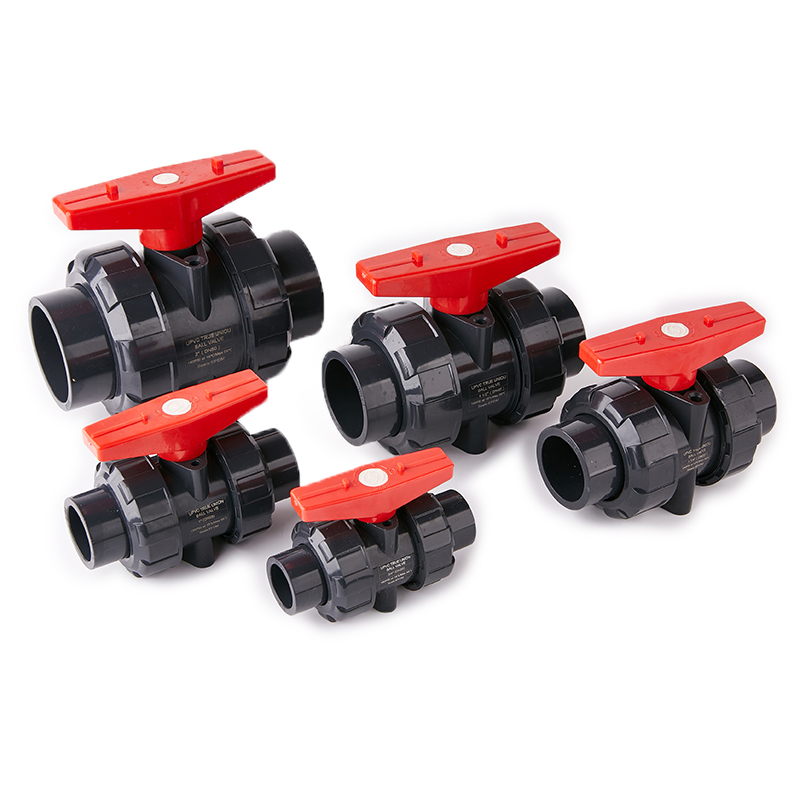

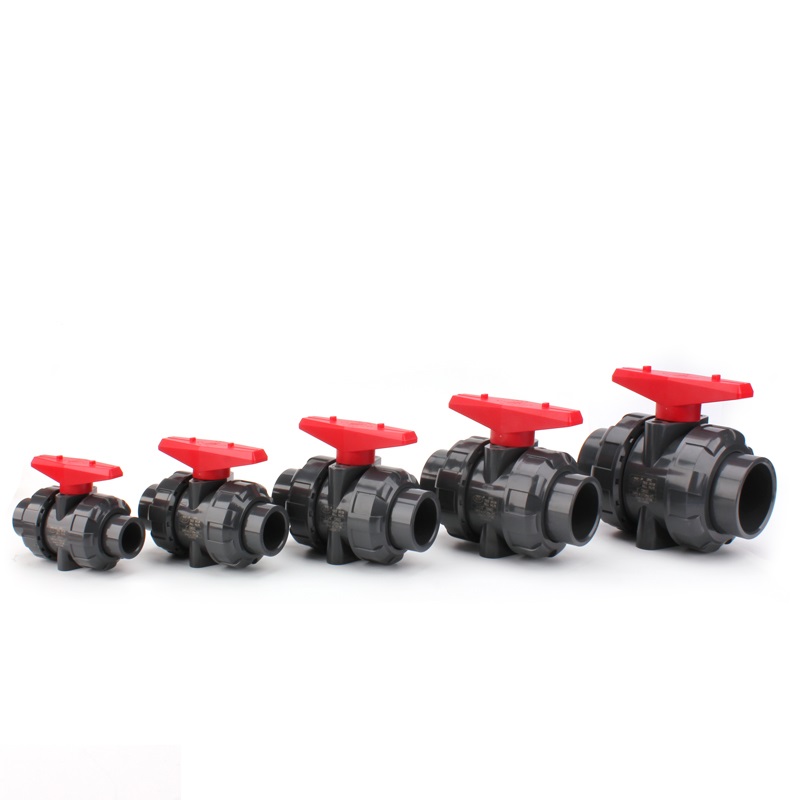

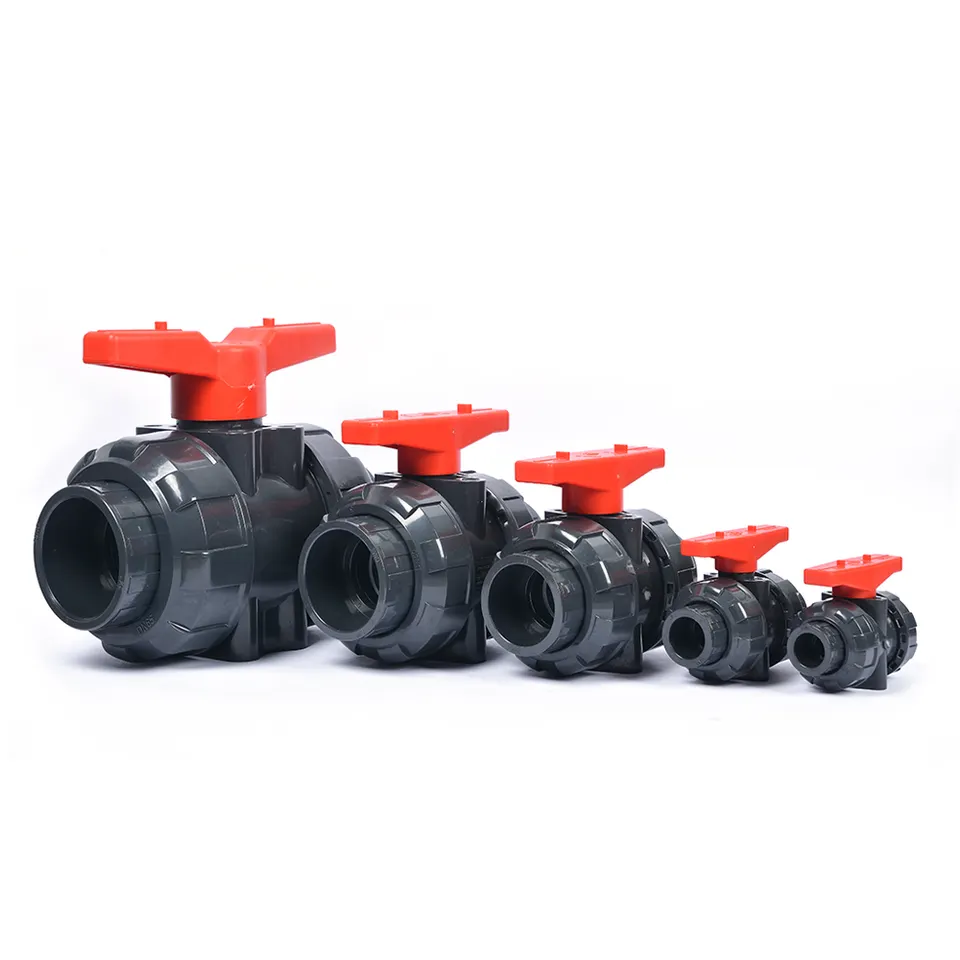

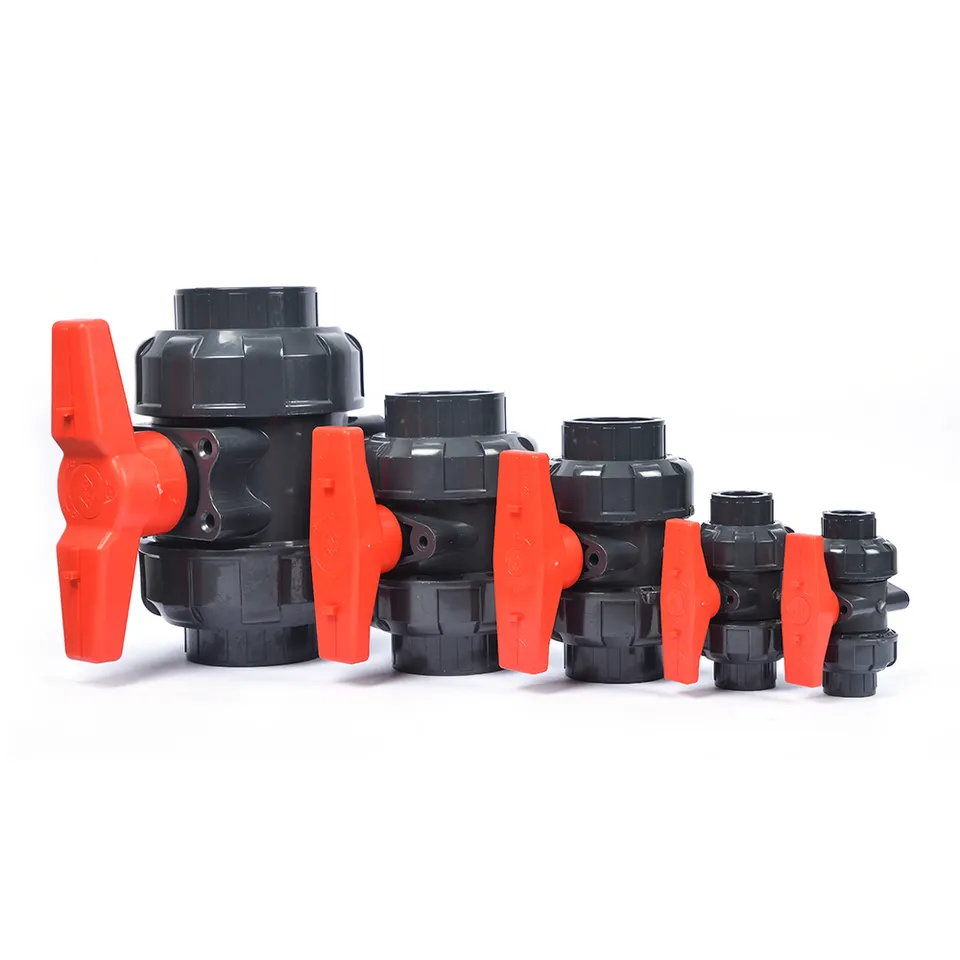

  • Sizes from D16 to D110 (⅜”-4”).
  • D16-D63 (⅜”-2”): PN16 (240 psi)
  • D75-D125 (2½”-4”): PN 10(150 psi)
  • Available standards: DIN Metric, ASTM, British Standard.
  • Threaded versions: BSP and NPT.
  • O-Rings available in food grade EPDM or Viton®.
  • Description
  • Videos

FIG.

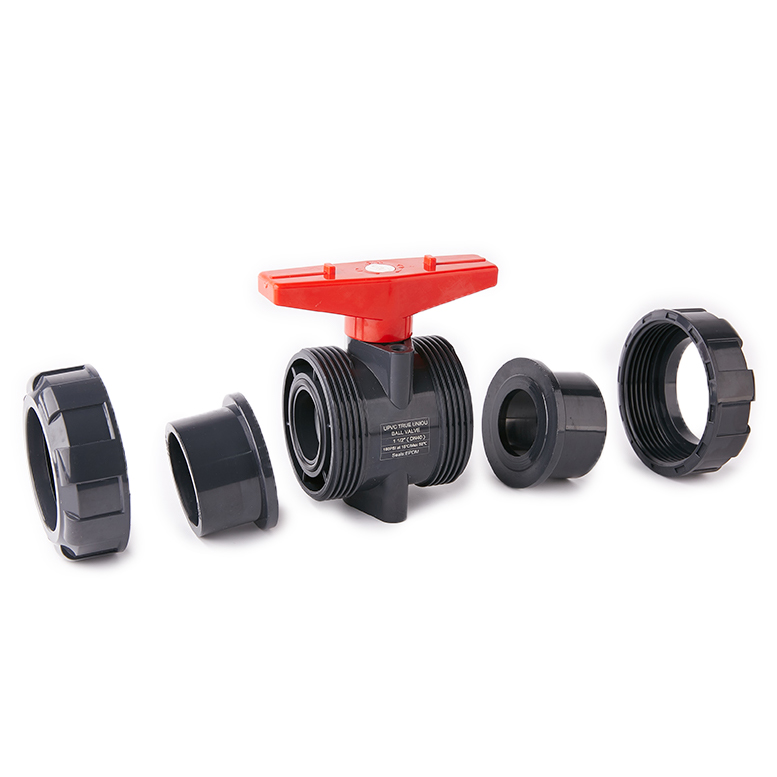

PARTS MATERIAL

1

End Connector U-PVC
2 Union Nut U-PVC
3 End Connector O-Ring EPDM
4 End Connector O-Ring EPDM
5 Adaptor SUS304
6 Shaft U-PVC
7 Stand U-PVC
8 End Connector O-Ring EPDM
9 End Connector O-Ring EPDM
10 Seal – Carrier U-PVC
11 Ball Seat PTFE
12 Ball U-PVC
13 Body U-PVC
14 Handle ABS/PP
