| FIG. | PARTS | MATERIAL | QTY |
| 44 | O-Ring | EPDM/VITON | 2 |
| 41 | O-Ring | EPDM/VITON | 2 |
| 18 | Logo | ABS | 1 |
| 17 | Union End | UVPC/CPVC/PPH/PVDF | 2 |
| 10 | Handle | ABS | 1 |
| 07 | Sear Seal | TPV | 2 |
| 06 | Ball | UVPC/CPVC/PPH/PVDF | 1 |
| 05 | Stem | UVPC/CPVC/PPH/PVDF | 1 |
| 01 | Body | UVPC/CPVC/PPH/PVDF | 1 |
- Call Us
+91 96010 88662 - Email Us
sales@evawater.in - Mon - Fri
09.00 to 07.00

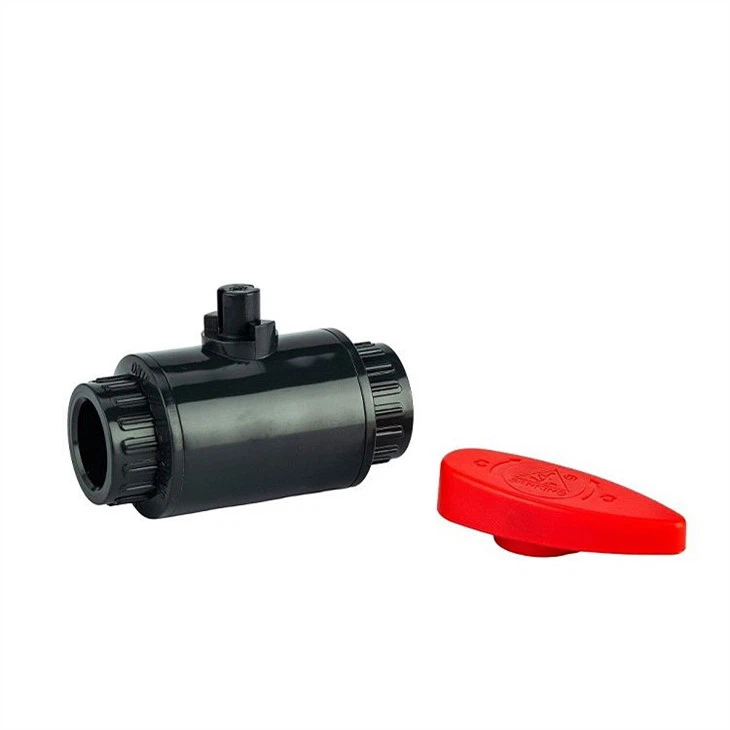

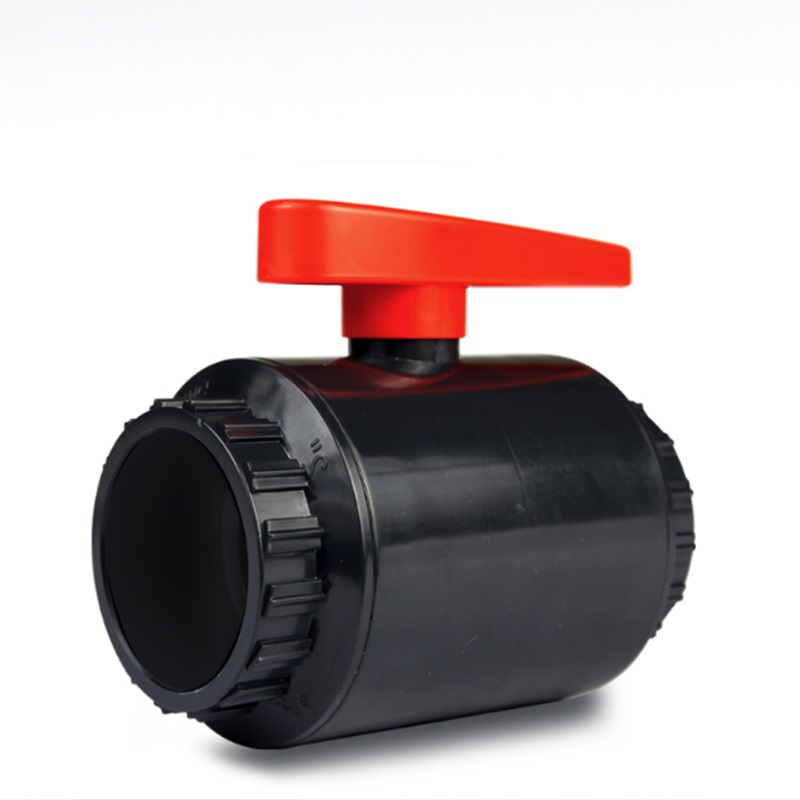

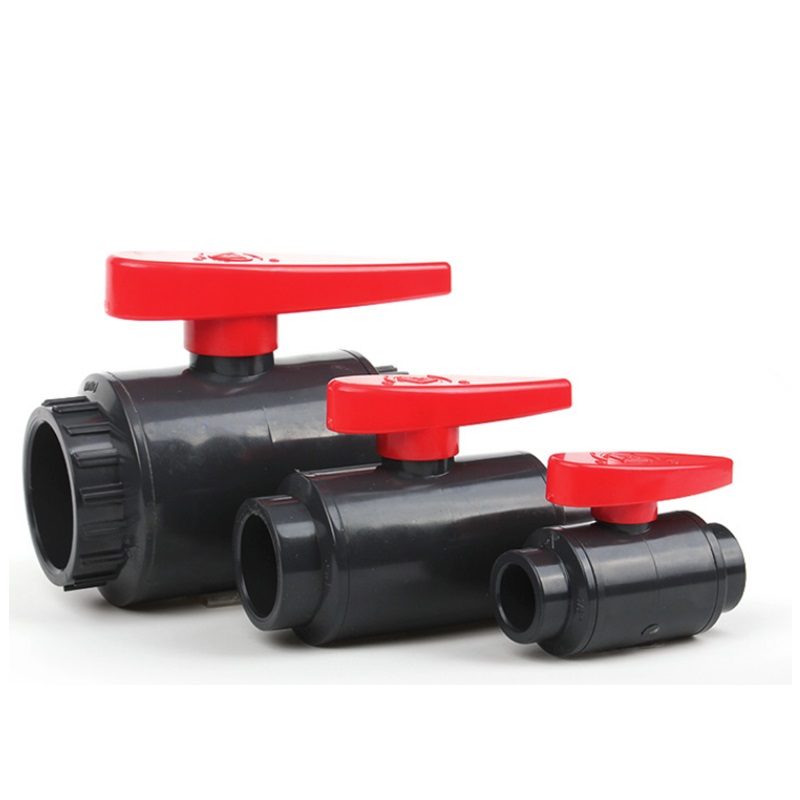

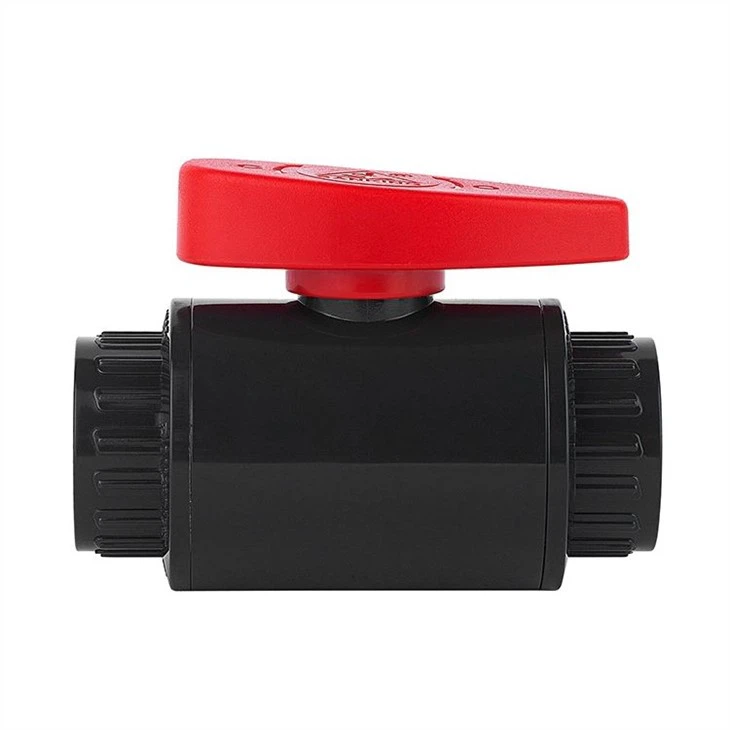

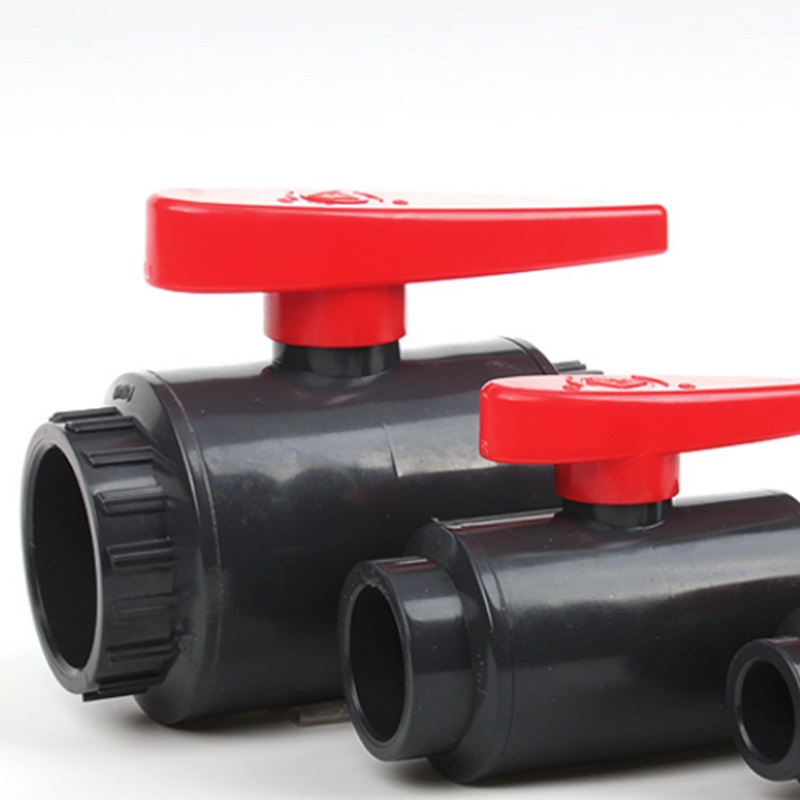

UPVC COMPACT BALL VALVE
TECHNICAL CHARACTERISTICS
- Size:1/2''- 4''
- Standard: ANSI, DIN, JIS, CNS
- Joint End: Socket or Threaded (NPT, PT, BSPF)
- Working Pressure: 150 PSI
- Low operate torque & 100% pressure testing before leaving the factory.
- Pure material without any CaCO3 & UV powder is added.
- Valve's color: PVC (dark Gray/white), CPVC (light Gray), HT-CPVC(light yellow)
- Operating Temperature: PVC (0~55℃); CPVC & HT-CPVC (0~95℃)
