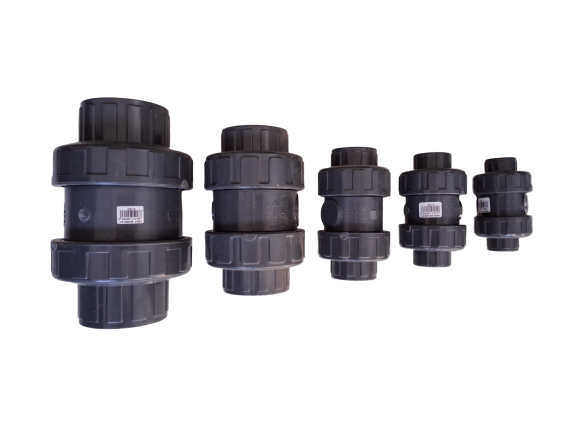

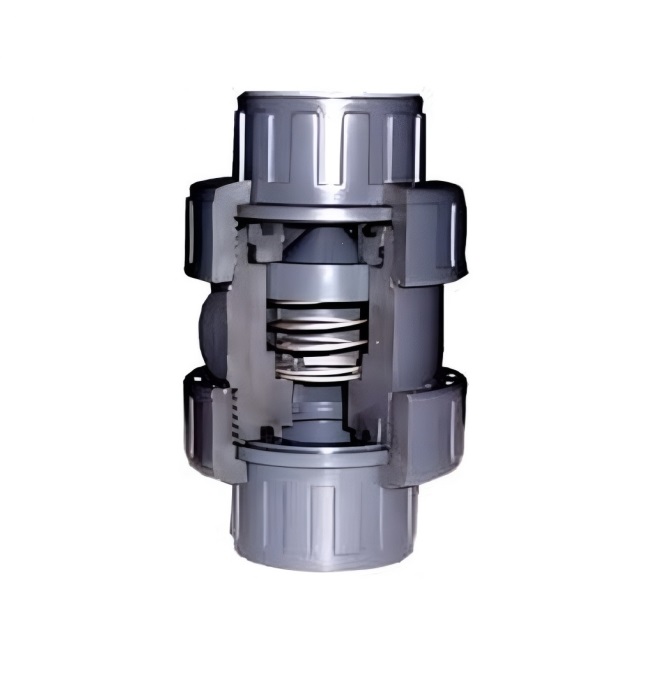

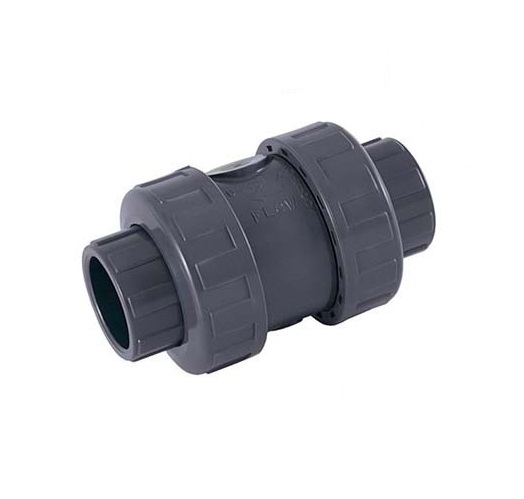

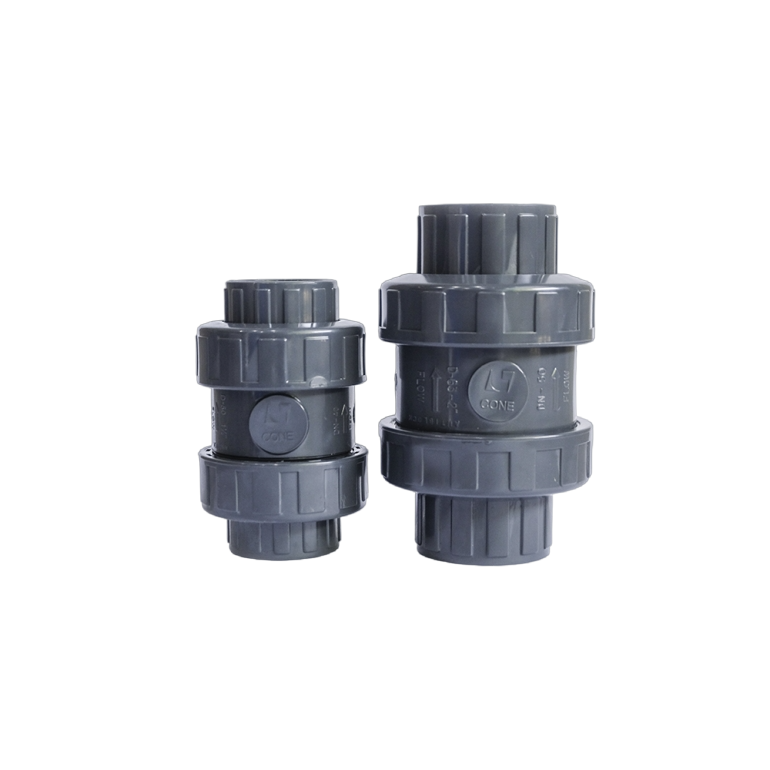

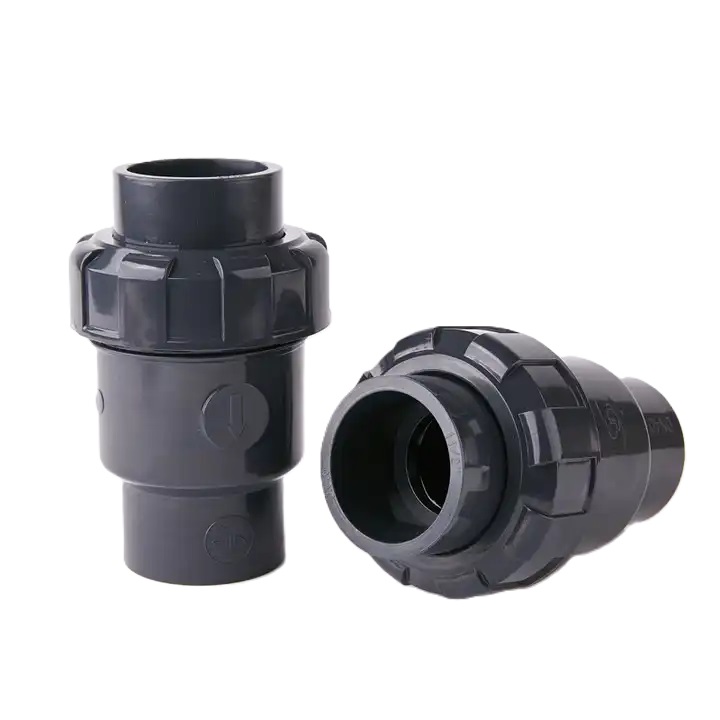

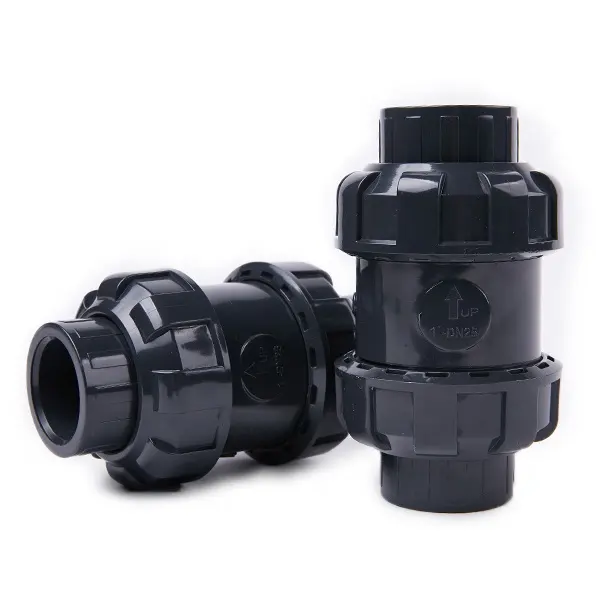

UPVC SPRING CHECK VALVE - DOUBLE UNION

TECHNICAL CHARACTERISTICS

  • 100% factory tested.
  • Easy installation and maintenance.
  • May be used either vertically and horizontally.
  • Available in PVC-U and Corzan® PVC-C.
  • Resistance to many inorganic chemicals.
  • Excellent flow characteristics.
  • Sizes from D16 to D110 (⅜” - 4”).
  • Available standards: Metric, ASTM, British Standard.
  • Threaded versions: BSP and NPT.
  • O-Rings available in EPDM or Viton®.
  •  Working pressure at 20°C (73°F) water temperature:
  • D16 - D63 (⅜” - 2”): PN 16 (240 psi)
  • D75 - D110 (2½” - 4”): PN 10 (150 psi)
  • Description
  • Videos

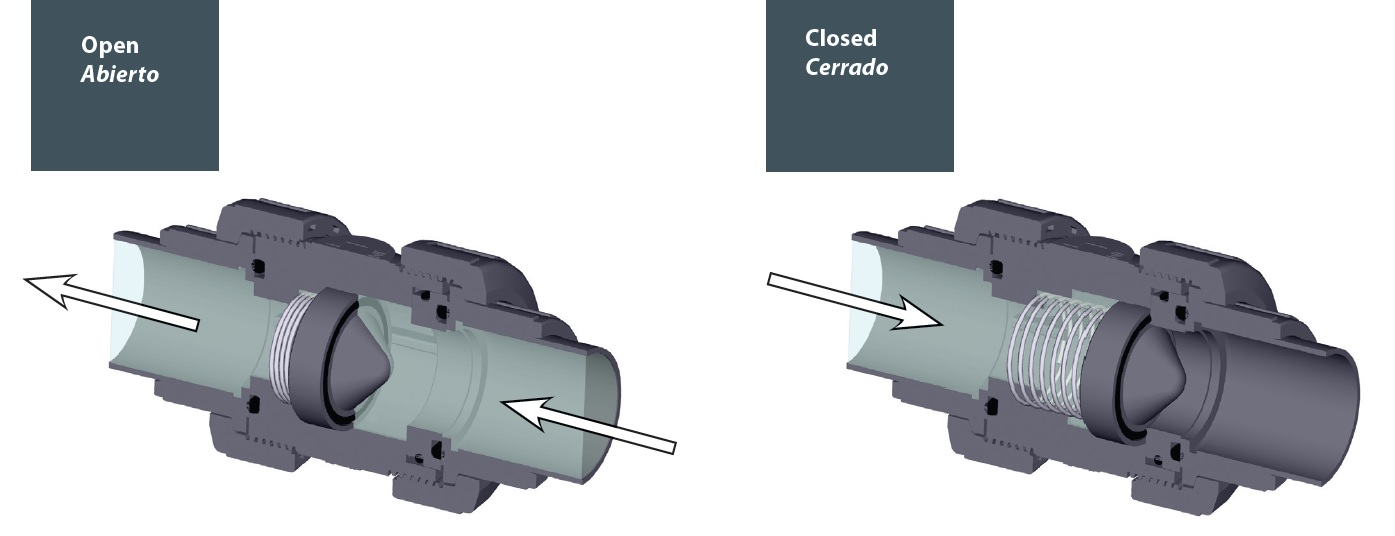

FIG PARTS MATERIAL
1 Body PVC-U / PVC-C
2 Cone PVC-U / PVC-C
3 Spring Inox.Steel AISI 302
4 Union Nut PVC-U / PVC-C
5 End Connector PVC-U / PVC-C
6 Cone O - Ring EPDM / Viton
7 End Connector O-Ring EPDM / Viton
8 Seal-Carrier PVC-U / PVC-C
