| FIG. | PARTS | MATERIAL |
| 1 | Shaft | PVC-U |
| 2 | Ball | PVC-U |
| 3 | Union Nut | PVC-U |
| 4 | Handle | PP |
| 5 | End Connector | PVC-U |
| 6 | Ball Seat | HDPE |
| 7 | Shaft O-Ring | EPDM |
| 8 | Body O-Ring | EPDM |
| 9 | Dampener Seal | EPDM |
| 10 | End Connector O-Ring | EPDM |
| 11 | Body | PVC-U |
| 12 | Seal - Carrier | PVC-U |

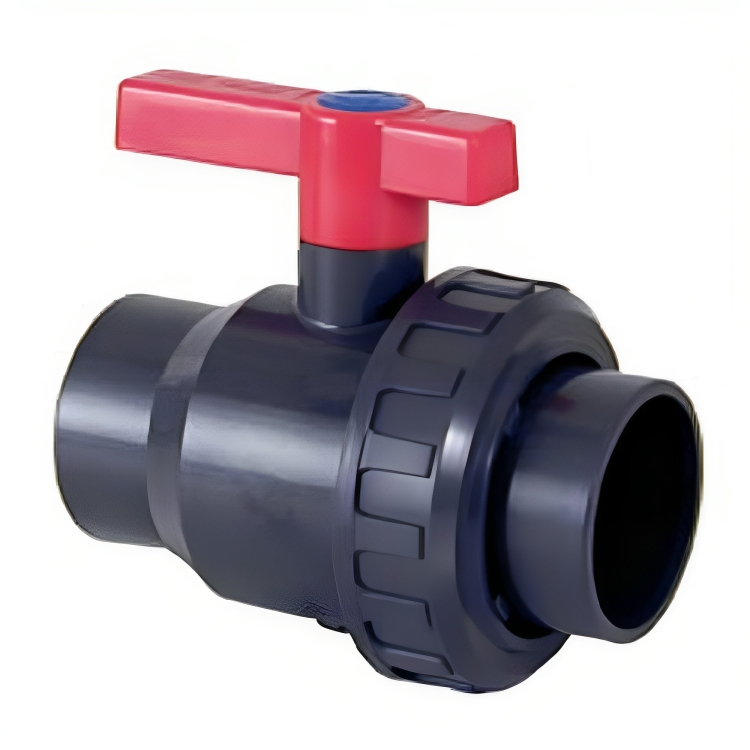

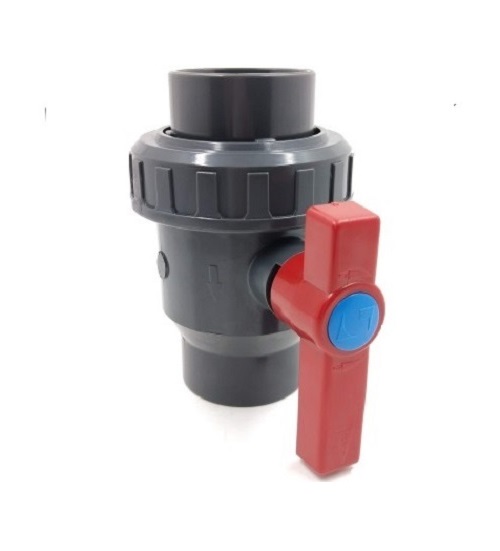

CEPEX UPVC (Unplasticized Polyvinyl Chloride) single union ball valve is a type of valve used to control fluid flow in piping systems. It features a single union fitting on one end, allowing for easy installation and removal, and a ball with a bore that rotates to open or close the flow path. These valves are known for their durability, chemical resistance, and suitability for various applications, including irrigation, swimming pools, and industrial processes.
CEPEX UPVC Single Union Ball Valve is a compact and cost-effective valve used for controlling fluid flow, especially in non-critical applications like irrigation, pools, and light industrial systems. Here's what makes it stand out:
Key Features
Material: Made from unplasticized PVC (uPVC), offering excellent chemical and corrosion resistance.
Single Union Design: One side of the valve has a union connection, allowing for easier installation and maintenance compared to fixed-end valves.
Sealing Components: Typically uses PTFE seats and EPDM or FKM O-rings for reliable sealing.
Operation: Quarter-turn handle for quick open/close control.
Applications
Agricultural irrigation
Swimming pools and spas
Water treatment systems
General plumbing
