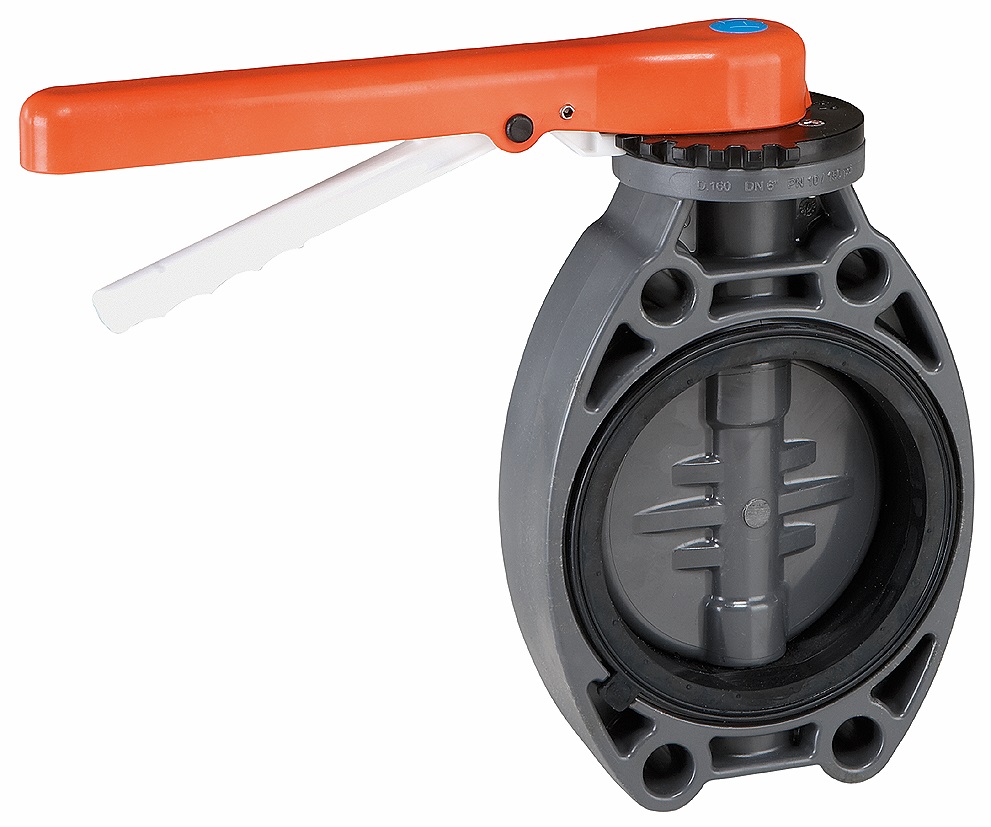

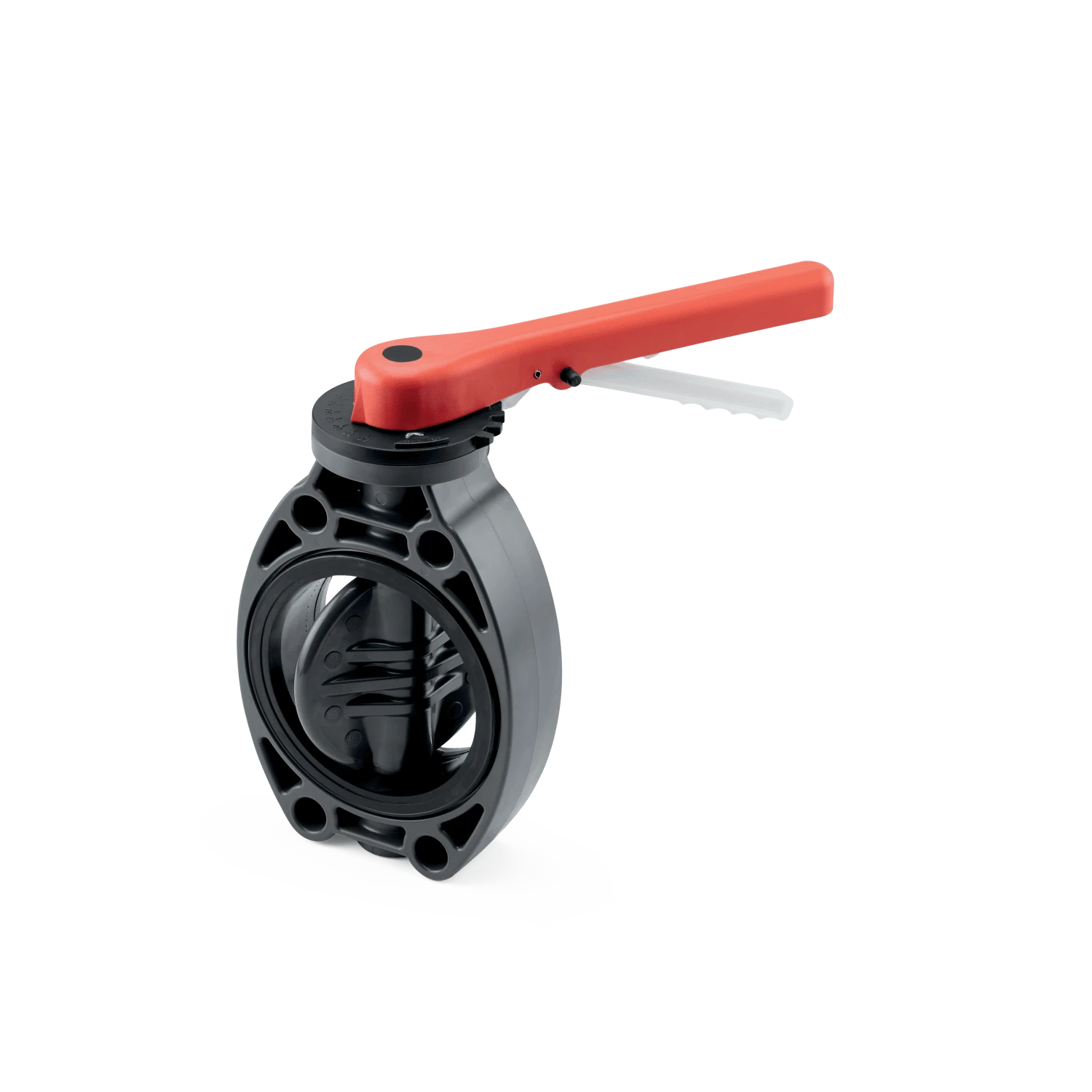

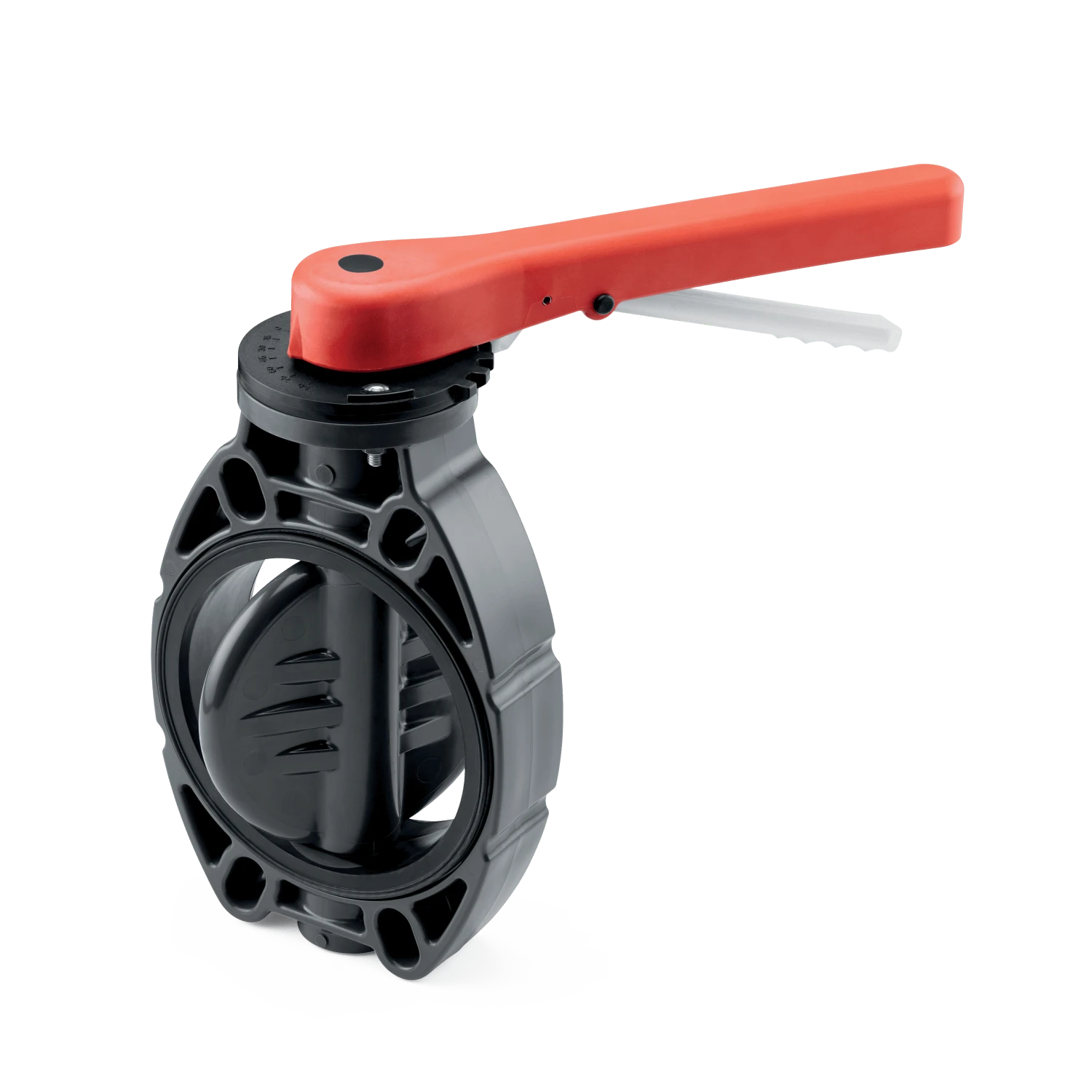

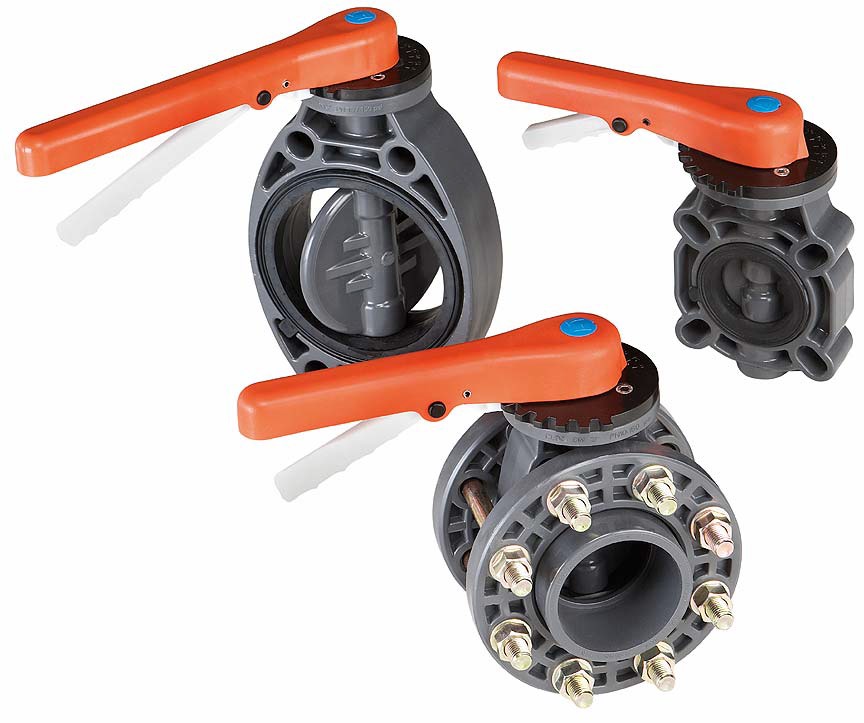

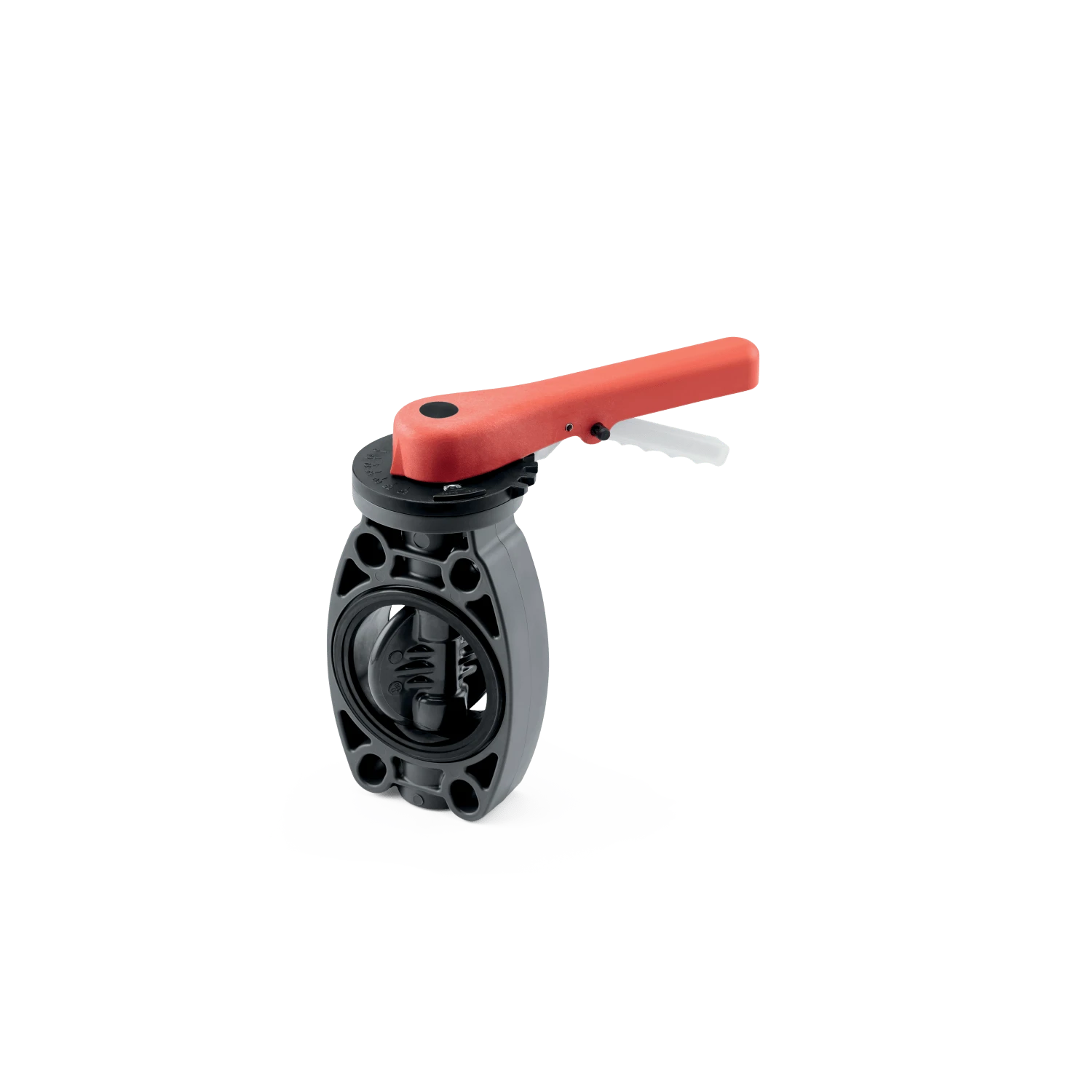

UPVC BUTTERFLY VALVE - IND

TECHNICAL CHARACTERISTICS

  • Ideally suited for flow control using minimal piping space.
  • 100% factory tested.
  • Minimal pressure drop.
  • Low maintenance.
  • Resistance to many inorganic chemicals.
  • Excellent flow characteristics.
  • Good mechanical strength.
  • One piece PVC-U body.
  • New disc design in PVC-U

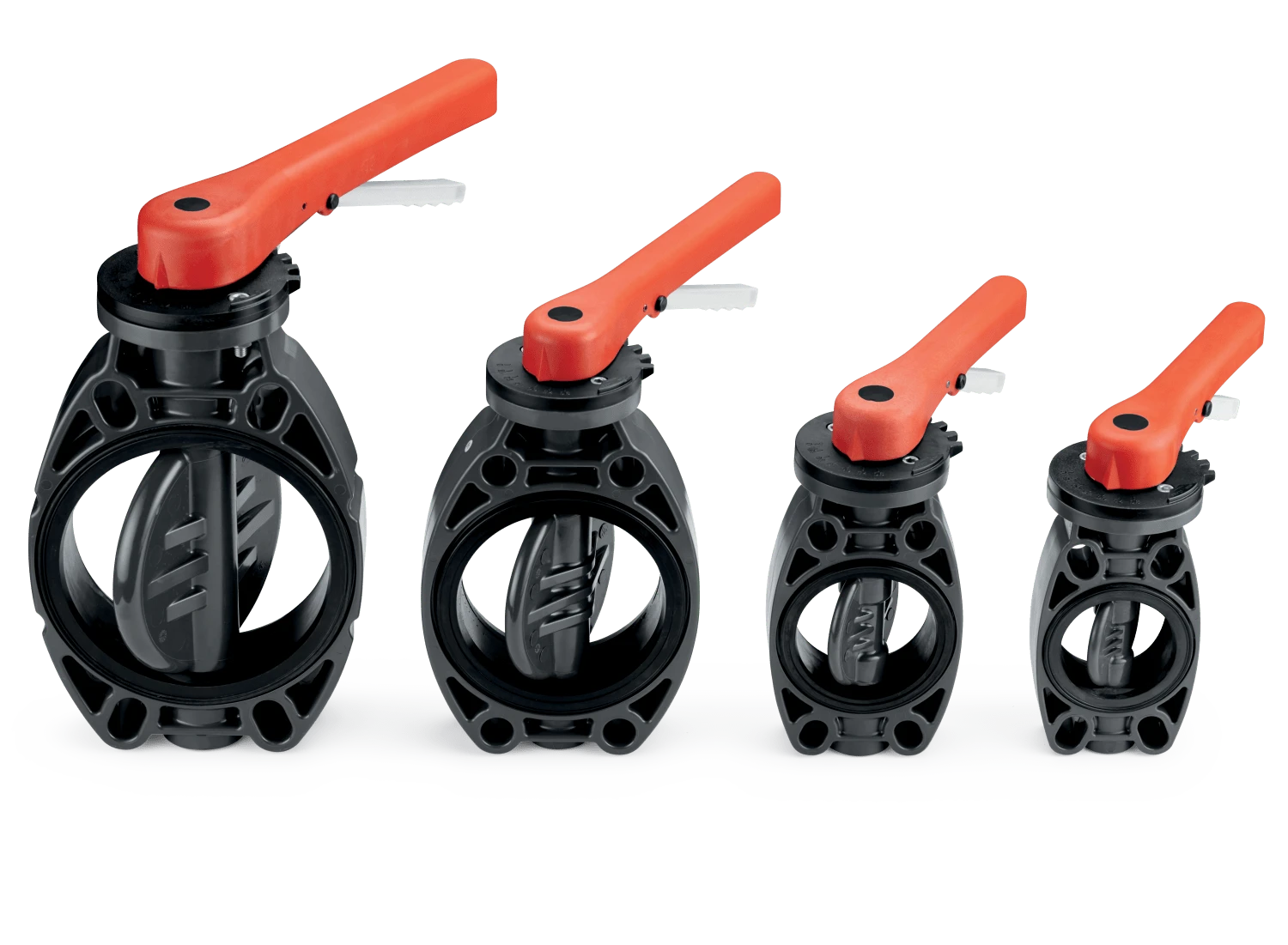

  • Sizes from 63 mm to 315 mm (2” - 12”).
  • Available standards: ISO/DIN, ANSI/ASTM,British Standard, JIS.
  • Rubber seal available in EPDM or Viton®.
  • Non-wetted zinc plated steel shaft.
  • Ideally suited for irrigation installations or swimming pools.
  • Working pressure at 20°C (73°F) water temperature:
  • D63 - D315 (2” - 12”): PN 10 (150 psi)



  • Description
  • Videos
FIG. PARTS MATERIAL
1 Body PVC-U
2 Valve Disc PVC-U
3 Rubber Seal EPDM/Viton
4 Shaft Zinc Plated Steel
5 O-Ring Seal EPDM/Viton
6 Top bearing PP-GF
7 Throttle Plate POM

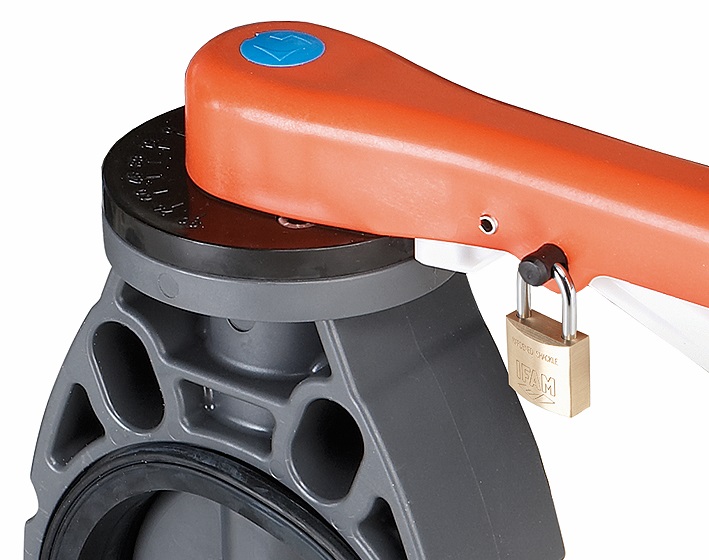

8 Lever-Lock POM
9 Handle PP-GF
