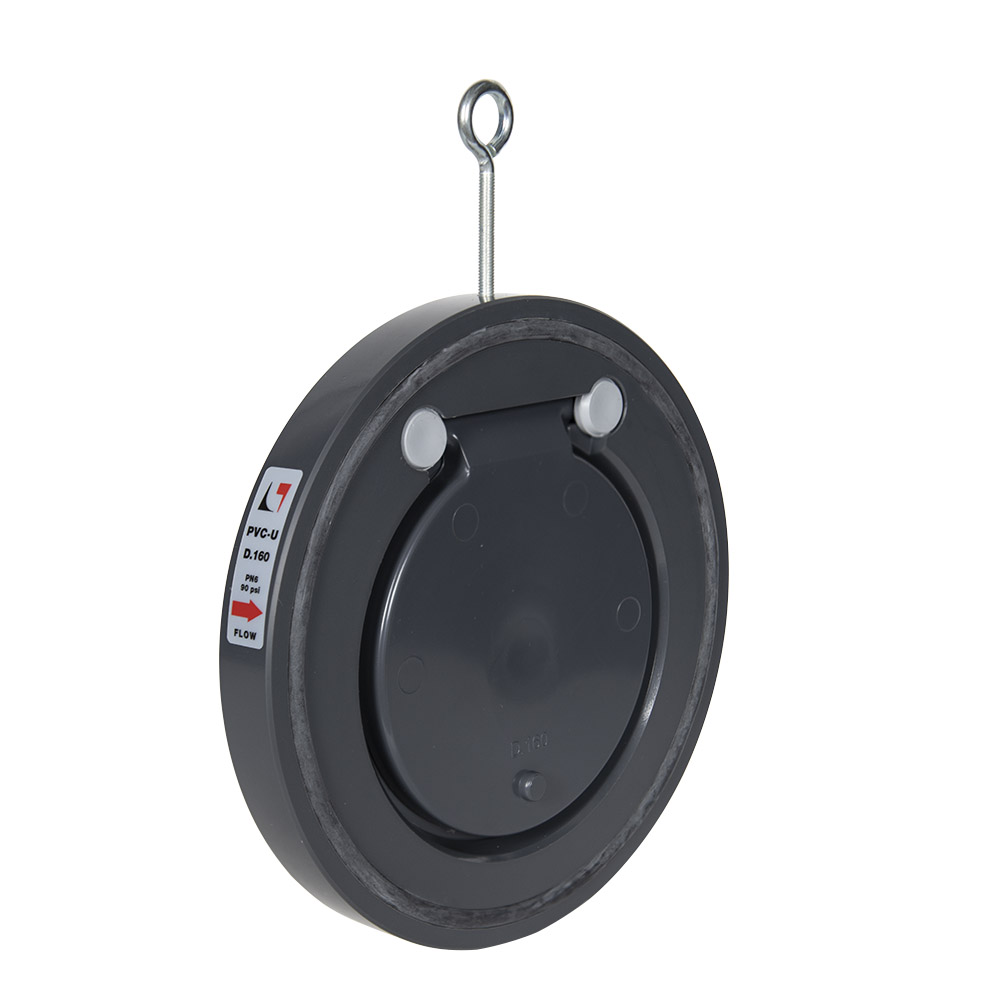

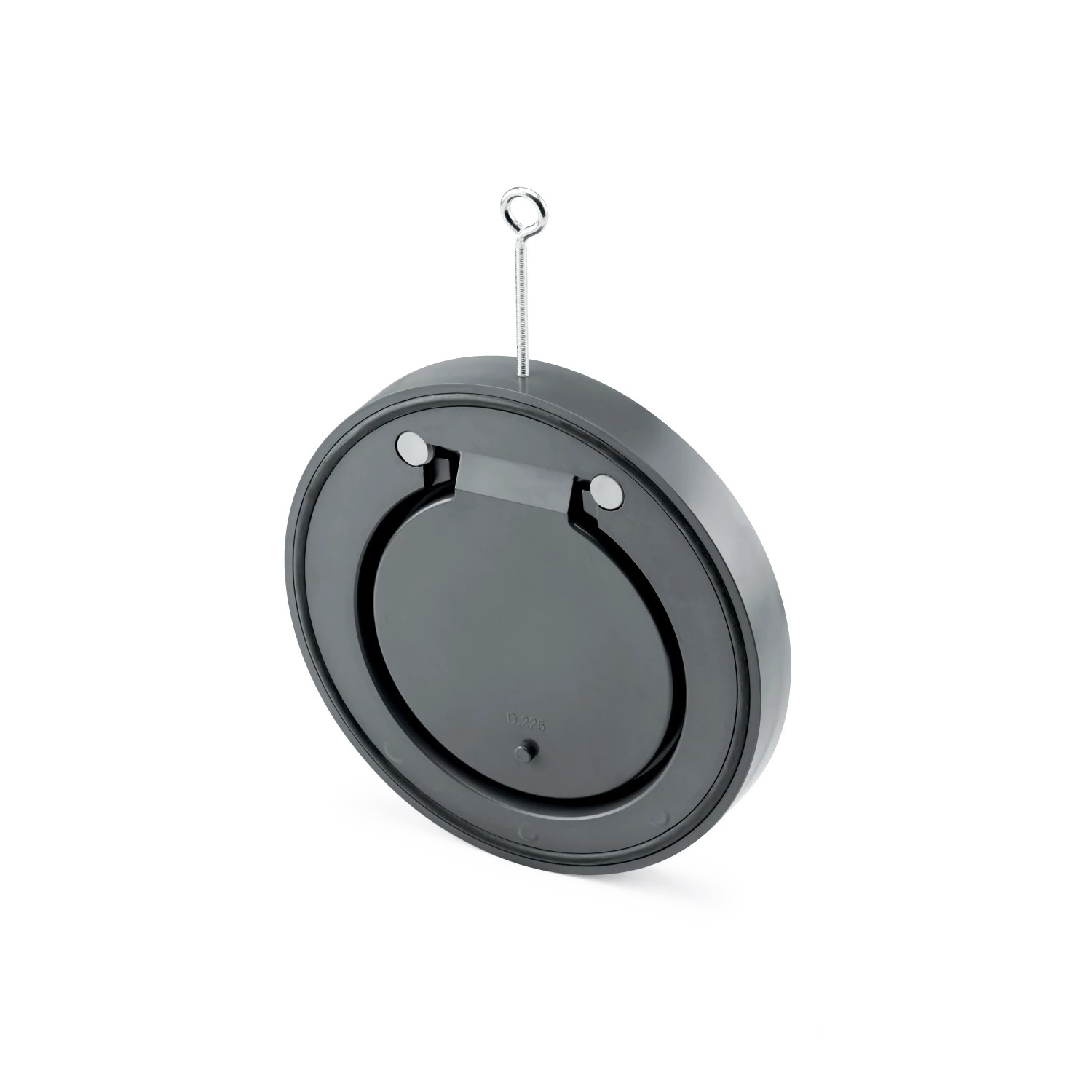

UPVC WAFER CHECK VALVE

TECHNICAL CHARACTERISTICS

  • Requires little space in piping systems.

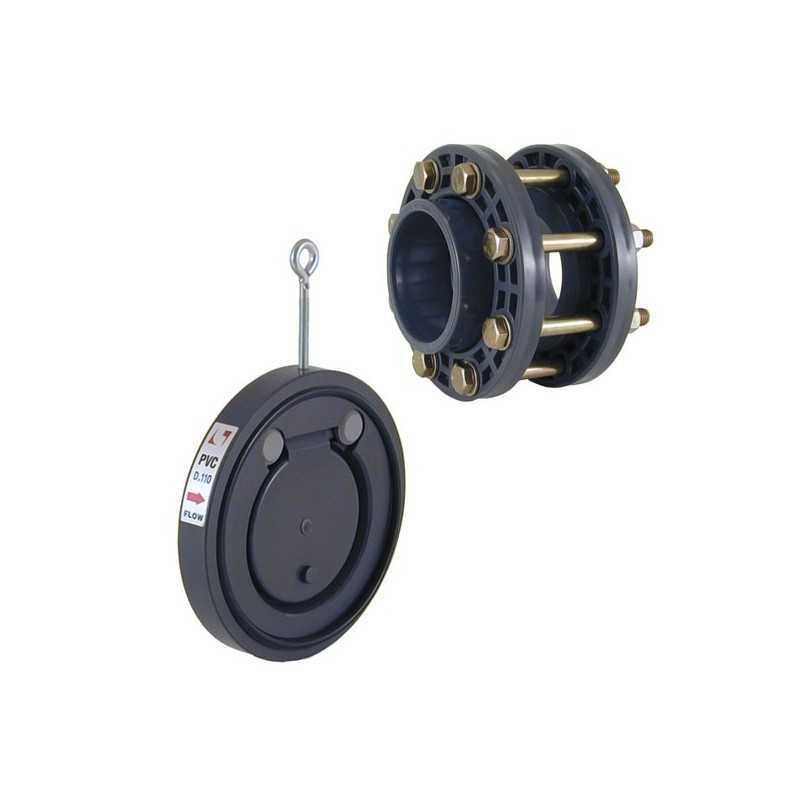

  • Easy installation: wafer body slips between standard flanges. No gaskets required.
  • Vertical and horitzontal operation.
  • Available with EPDM or Viton® O-Rings.
  • Excellent flow characteristics.

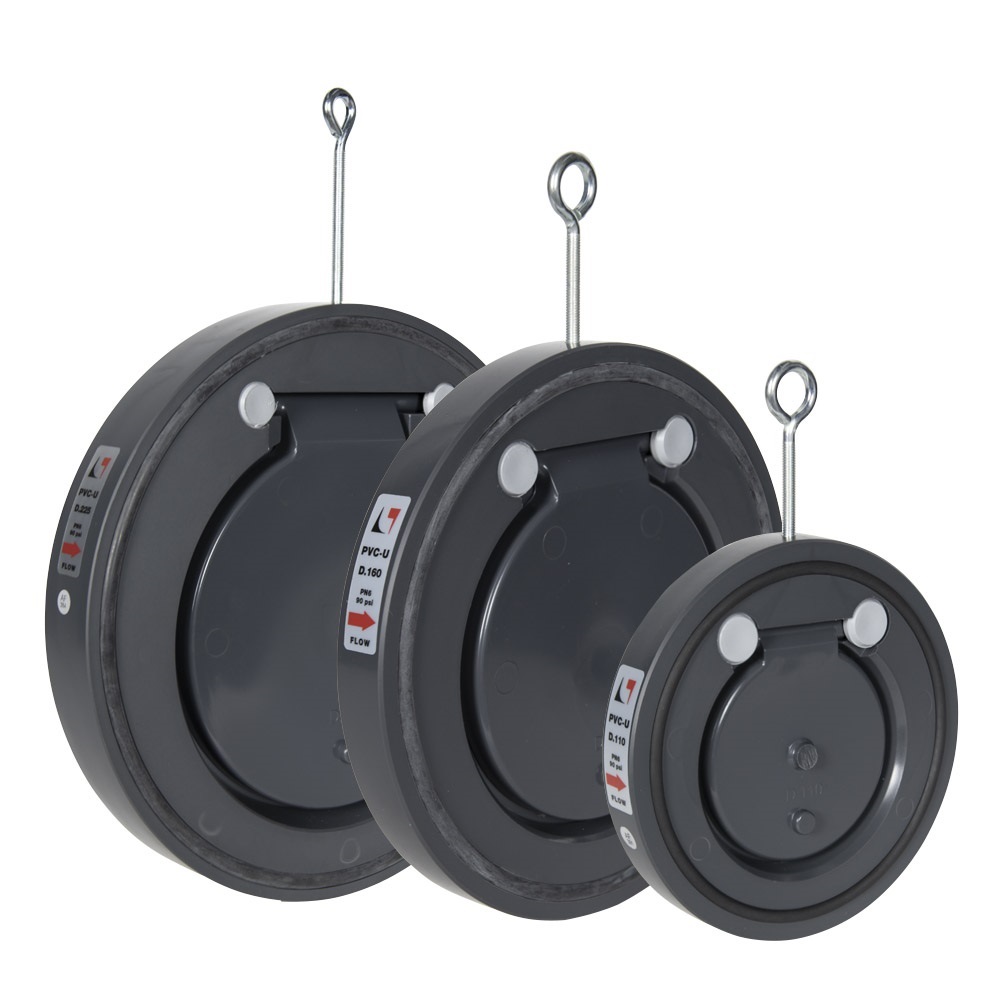

  • Sizes from D63 mm to D315 mm (2”- 12”).
  • Available Standards: ISO/DIN, also ANSI/ASTM.
  • Do not install the valve at a distance lower than 5 x D of the pump out.
  • Install with pipe and flange DIN PN 10.
  • Minimum return pressure: 0,2 bar (3 psi).
  • Working pressure at 20°C (73°F) water temperature:
  • D63- D140 (2” - 5”): PN 10 (150 psi)
  • D160 - D225 (6” - 8”): PN 6 (90 psi)
  • Description
  • Videos
FIG. PARTS MATERIAL
1 Body PVC-U
2 Flap PVC-U
3 Cap PP
4 Body O-Ring EPDM / Viton®
5 Flap O-Ring EPDM / Viton®
