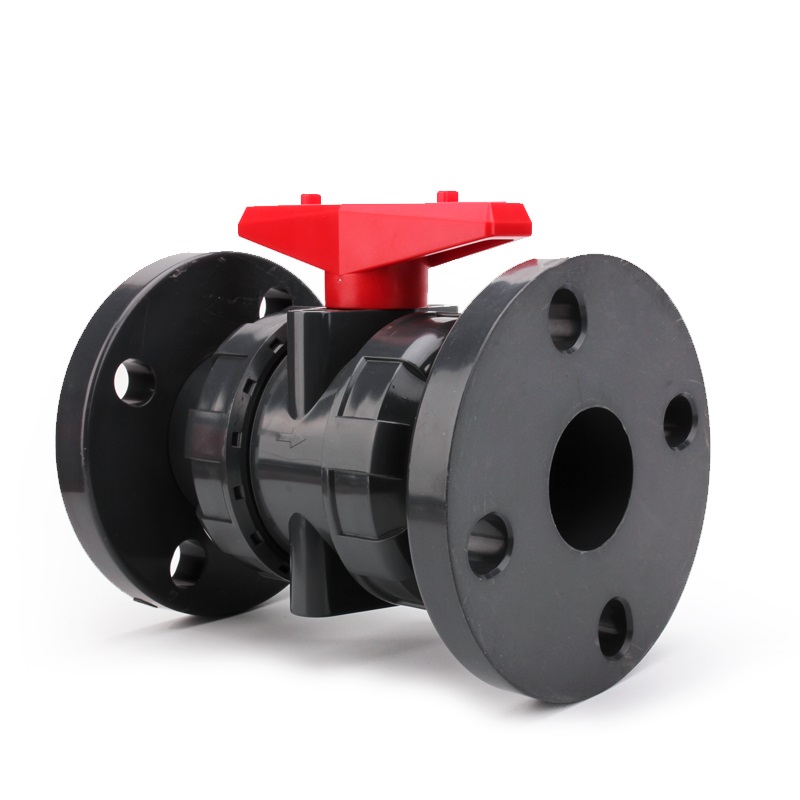

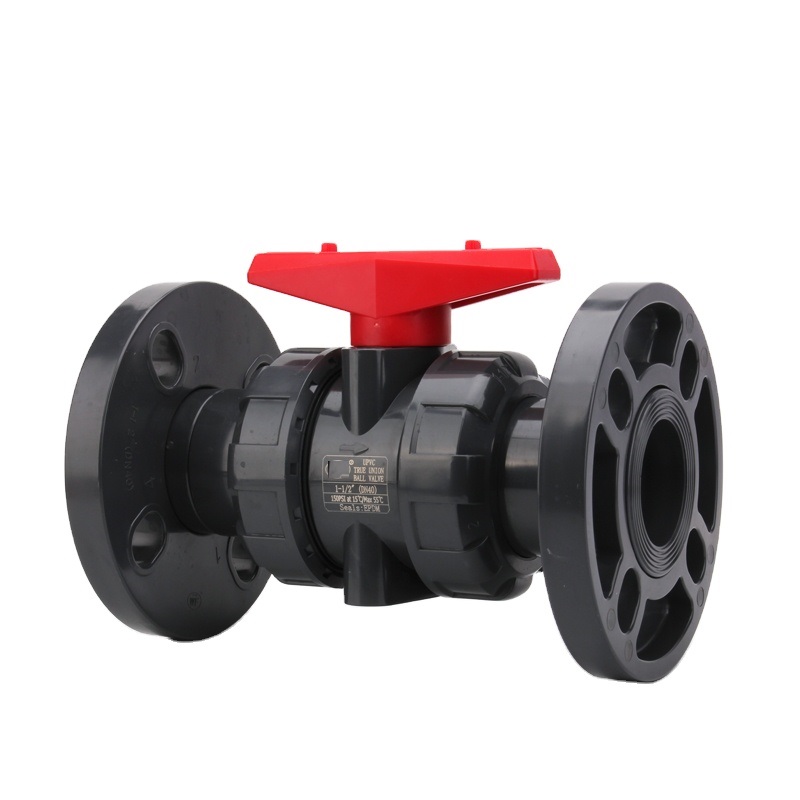

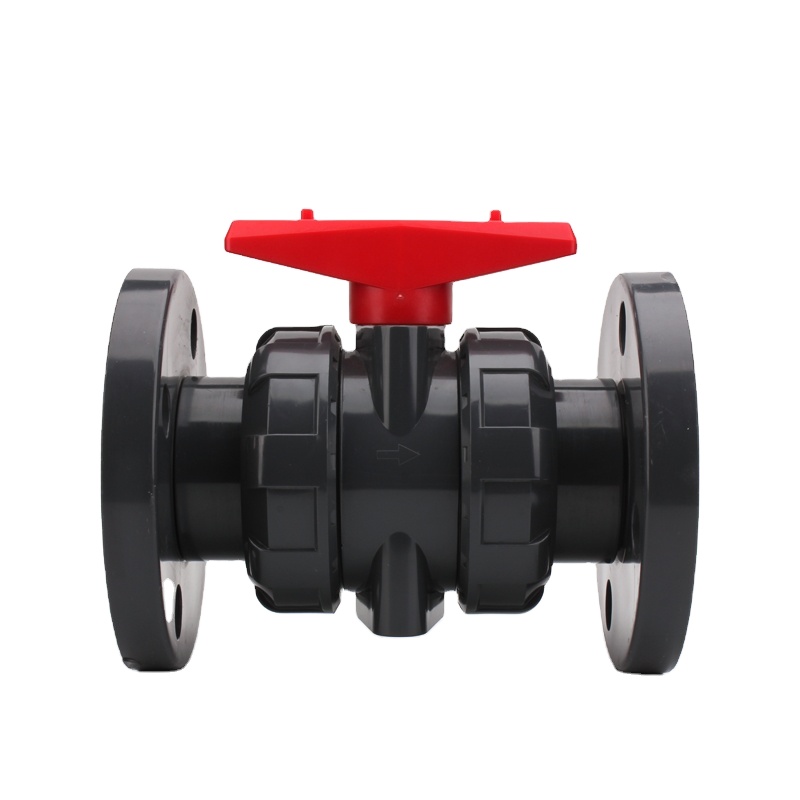

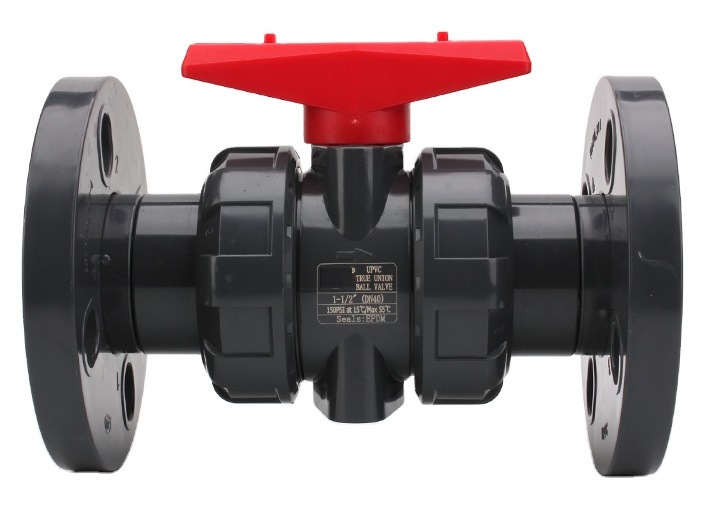

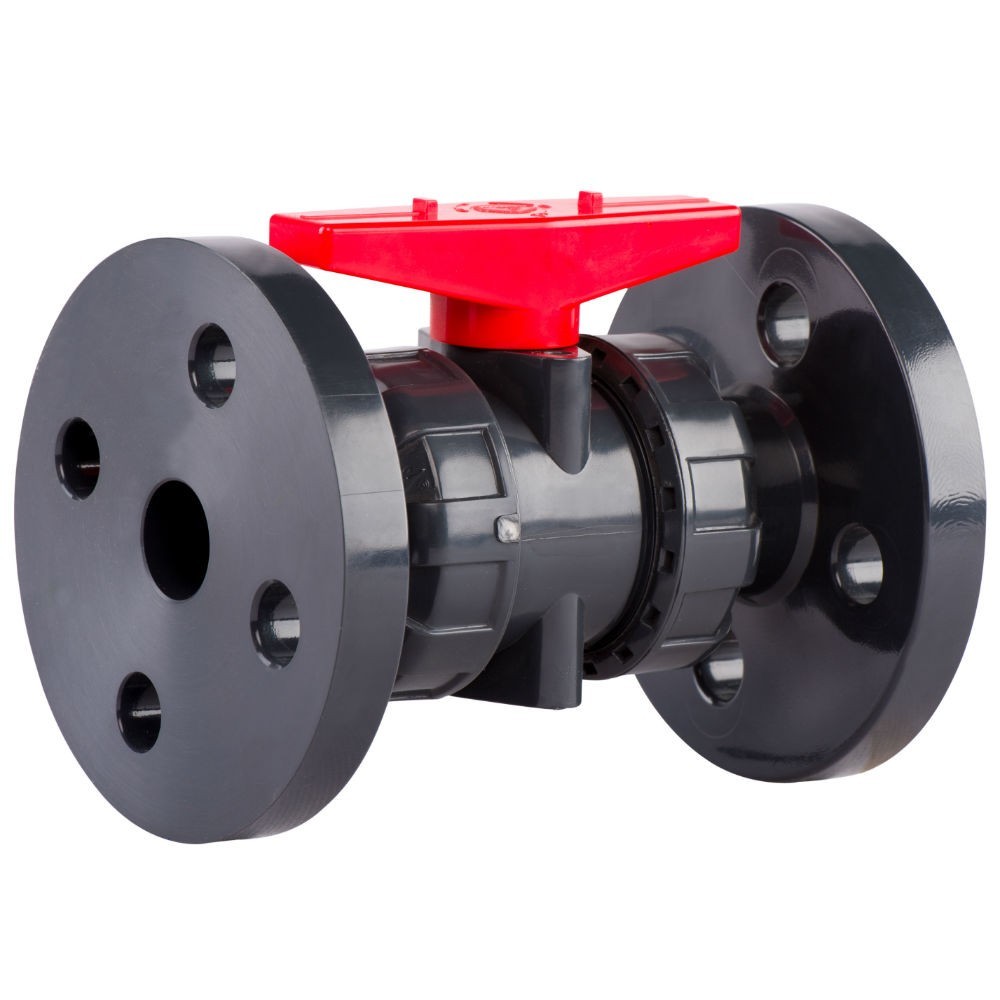

TECHNICAL CHARACTERISTICS
• 100% factory tested.
• Minimal pressure drop.
• Low operating torque.
• Resistance to many inorganic chemicals.
• Excellent flow characteristics.
• Sizes from D16 to D110 (⅜”-4”).
• D16-D110 (⅜”-4”): PN10 (150 psi)
• Available standards: DIN Metric, ASTM.
• O-Rings available in food grade EPDM or Viton®.
• Ball seat available in HDPE or PTFE.
• Flanged End – ISO EN 1452 / ISO EN 15493
ANSI ASME B16.5 class 150
| FIG. | PARTS | MATERIAL |
| 1 | End Connector | U-PVC |
| 2 | Union Nut | U-PVC |
| 3 | End Connector O-Ring | EPDM |
| 4 | End Connector O-Ring | EPDM |
| 5 | Adaptor | SUS304 |
| 6 | Shaft | U-PVC |
| 7 | Handle | U-PVC |
| 8 | End Connector O-Ring | EPDM |
| 9 | End Connector O-Ring | EPDM |
| 10 | Seal - Carrier | U-PVC |
| 11 | Ball Seat | PTFE |
| 12 | Ball | U-PVC |
| 13 | Body | U-PVC |
| 14 | Flange Buckle | U-PVC |
